Premium House @ ₹ 2,350 per SFT

(Minimum - G+1 - Full Floor - < 1200 SFT per Floor)
BATHROOM & PLUMBINGELECTRICAL WORKSJOINERIES WORKSFLOORING & WALL TILING

Specification:

  • 2D Floor Plans
  • Electrical & Plumbing drawings
  • 3D Elevations – one side
  • Structural drawings

Civil Works

REINFORCEMENT DETAIL

RCC work on Mr. Manoj Villa, Ganapathy

  • Fully framed RCC Structure.
  • Fe 550 Grade – TMT Rod. Brands: JSW, Vizag.
  • Footing, Pedestrial, Columns, Plinth beam, Lintel, Loft, Roof slab, Roof bean, Cantilever beam, Bathroom sunkan roof slab will be done.

BASEMENT

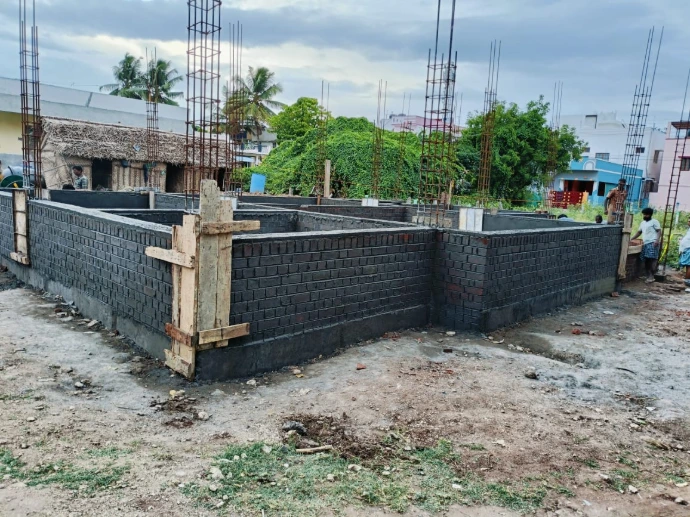

Basement work

Foundation:
  • Earthwork excavation of maximum depth up to 5-6 feet in ordinary soil from Natural Ground Level.
  • Raised up to 3 feet high from the Natural Ground Level constructed using good quality FlyAsh Bricks and all inner walls are rough plastered.

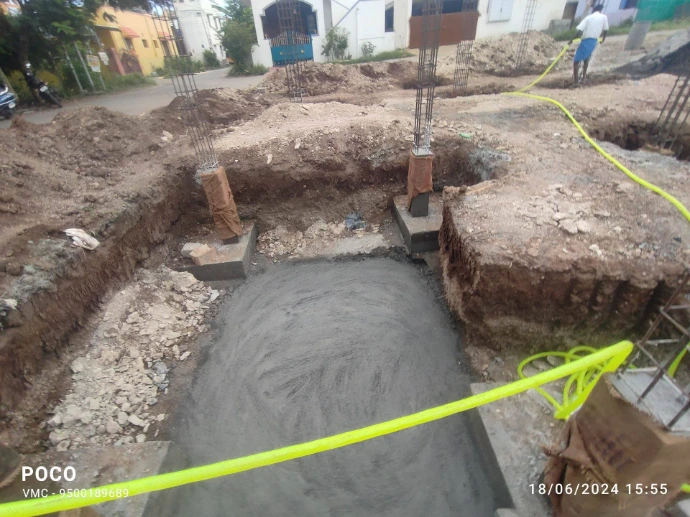

PCC work
PCC
  • Plain cement concrete (1:5:10) is done with 40mm aggregate.
  • PCC work will be done Footing and built-up flooring area.
PCC work

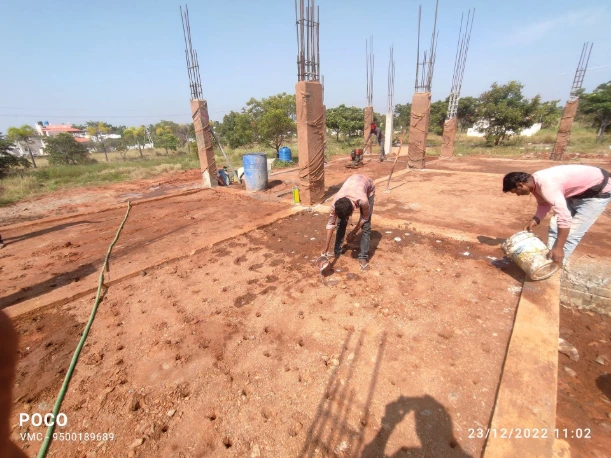

SOIL FILLING
  • Back filling of excavated soil in Columns, basement and extra gravel needed will be purchased - pond watering, soil consolidation.
  • Anti-Termite Treatment at foundation, plinth level, Flooring level.

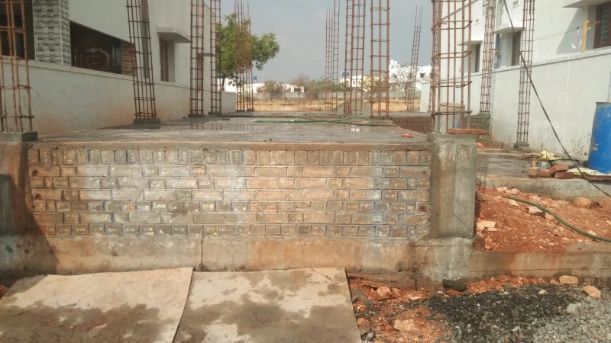

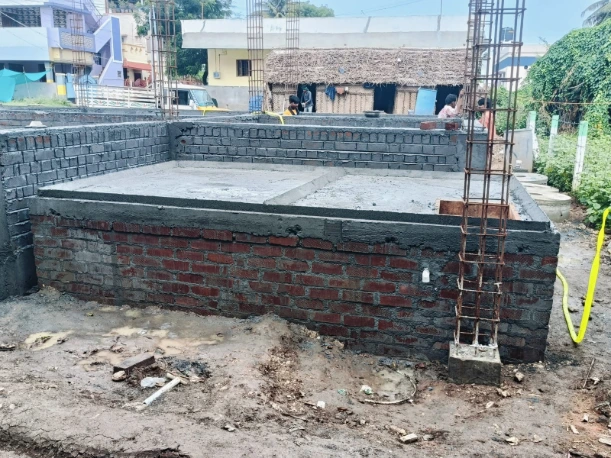

Basement Brick work
RED BRICK WORK
  • In cement mortar 1:5 using Red brick for 9” inch thick main walls and 1:4 for 4.5 inch thick Partition walls.
  • M-sand for mortar & concrete.

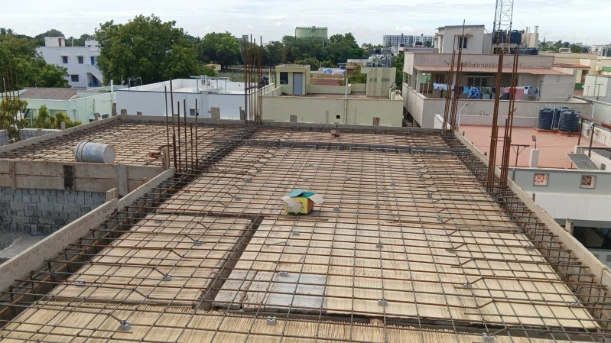

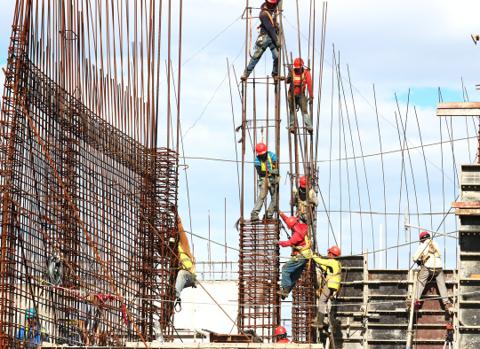

RCC Roof - bar bending and centring work
RCC
  • Using 1:1.5:3 –M20 mix with 20mm aggregate for slab, beams, column and all concrete work.
  • RMC for large quantity – 1:1.5:3 – M20 Grade – Ultratech  brands (based on availability)
  • Roof height – 10’0”

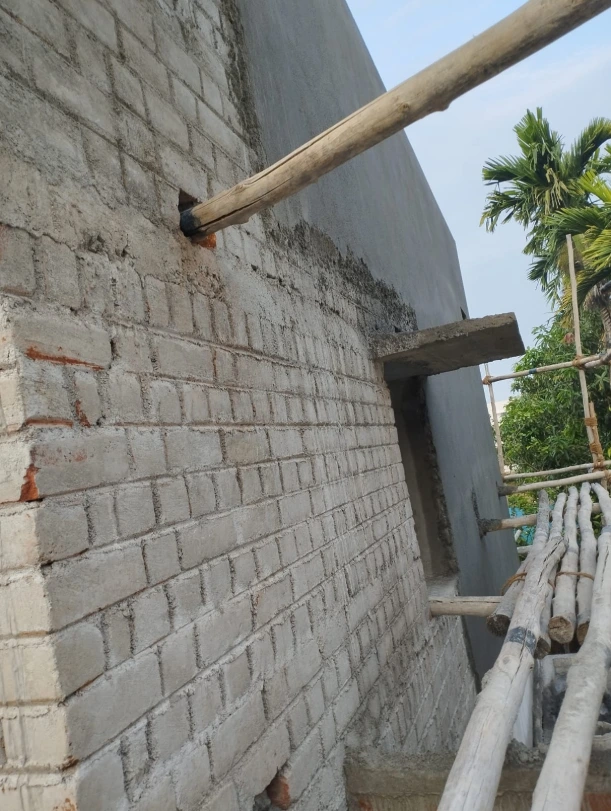

Plastering work
WALL PLASTERING
  • All walls and opens are plastered with cement mortar 1:6 of 12mm thick finished with sponge.
  • P-sand will be used for all plastering work in super structure.

BATHROOM & PLUMBING

 DADO TILES
  • Wall tiles upto Ceiling – Ceramic @ 45/Sq.ft., upto Lintel Level.
FLOOR TILES
  • Floor tiles: Anti Skid tiles @ ₹40 per SFT.
FIXTURES
  • All sanitary & CP fixtures for One bathroom is ₹ 18,000/- which includes EWC with Flush tank, Taps, Wash Basin, Wall mixer, Health faucet, Shower etc. For common bathroom – 8000 with PVC Fittings.
  • Brand Taps & Fittings – Parryware – EWC, IWC & Parryware - Fittings. Basic model

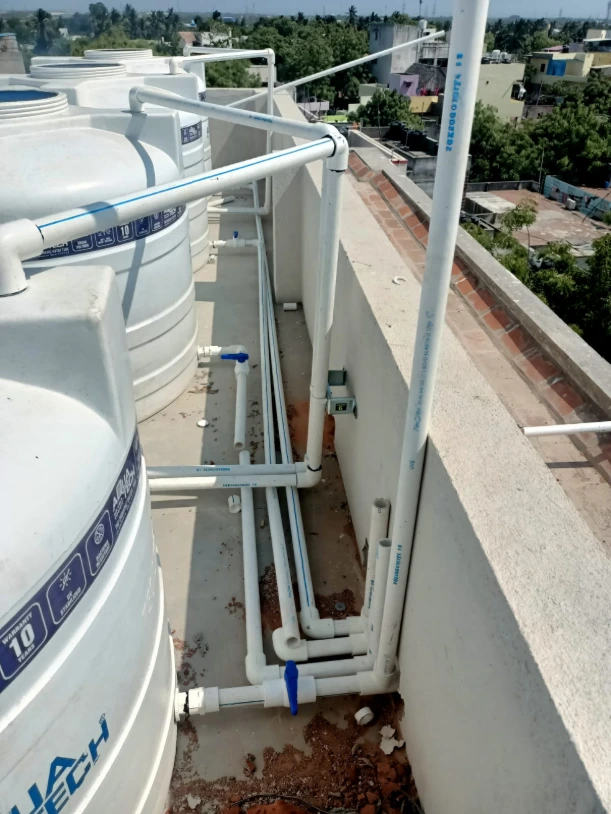

Plumbing work
PIPE WORKS
  • Single pipeline system (ie. Borewater) for all bathrooms and kitchens.
  • Additional good water pipeline for kitchen – one point
  • Pipes for outer lines – 1” CPVC. (Astral/Equiv)
  • Rain water pipeline PVC pipe ( 4kg/cm2).
  • Sewage pipeline using PVC pipe ( 4kg/cm2).
  • Sewage Chambers with FRP cover inside the built-up area.
  • Bore water tank – 1 KL – 1 nos + Good water – 500 Litre – 1 nos – Food grade
  • Solar water provision inside Bathroom will be given. Outer pipeline is extra cost.

ELECTRICAL WORKS

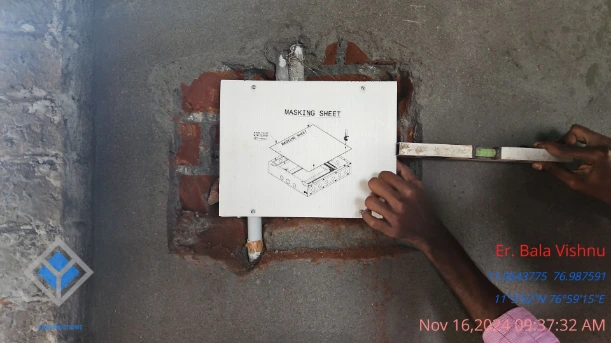

Electrical work
 CONDUITS
  • concealed works –PVC Conduits.
  • Each room separate circuit breaker. Each house separate Distribution box.
  • 1 UPS Point of Each Unit at the nearest feasible point.
  • CCTV Camera, Home theatre will be done for any future requirement.
  • Electric Car or Two Wheeler Charging Provision will be given in the parking.
  • All the electrical switches will be provided as per necessity with good quality.
 WIRES AND CABLES
  • Wires – Flame Retardent Low Smoke
  • Brands –FInolex project wires – Original only – meenakshi electricals.
 SWITCHES AND SOCKETS
  • Brands : GM – G9, Legrand – Allzy model
  • MCB: L&T, Anchor, GM or equivalent

JOINERIES WORKS

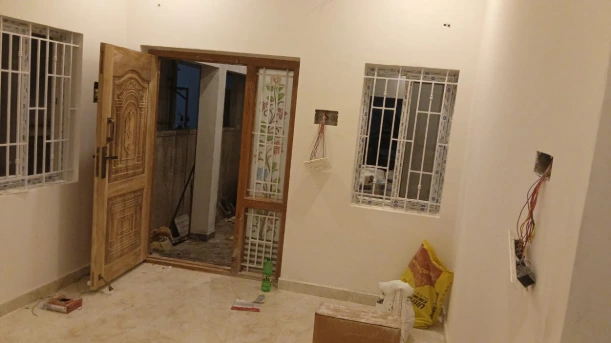

Wood work and paintings
  • Main door: Door size: 5’0” x 7’ with original Teak wood door with Shutters and fixed glass, frame size – 6” x 4”.
  • Internal doors: Door size: 3’ x 7’ –Sal wood frame @ rate of ₹ 3500.00 per frame of 4″x3″ with membrane or flush doors – per door including fittings like handles, locks, aldrops, hinges & tower bolts @ rate of ₹ 4500.00 per door.
  • Pooja room readymade MDF Door + Frame – total cost is 8000 – full set.
  • Rest Room Door: – Size: 2’6” x 7’0” – PVC door at the rate of ₹ 2500.00 per door.

WINDOWS

  • All windows are made of  Sal Wood material with shutter 3mm glass along and 12mm MS grill type.
  • Accessories and fittings are Powder coated.

FLOORING & WALL TILING

  • All inner rooms including staircase up-to ₹ 60/- per sqft
  • Balconies & sit out areas – anti skid tiles up-to ₹ 40/- per sqft
  • Bathroom/toilet wall up-to ₹ 40/- per sqft
  • Kitchen countertop Granite up-to ₹ 190/- per sqft
  • Kitchen wall tiles up-to Lintel level with rate of ₹ 50/- per sqft
  • Main door – Elevation tile rate upto 50 per SFT.
  • Grano flooring will be done in building – Open areas.
KITCHEN
  • Kitchen Concrete Table top – L Type is finished with granite added Quartz sink (single bowl).
  • Kitchen Sink: Quartz Sink upto ₹ 2,500/-
STAIRCASE:
  • Exterior Staircase will be constructed in RCC, Cement flooring finished with SS 304 hand rails.
PAINTING WORK
  • Wall & Ceiling – 2 Coat Putty + 1 Coat Of Primer
  • Exterior Walls: 1 Coat White wash + 1 Coat Of Primer
  • Main door – basic polish
  • Window – enamel two coats
  • Grills – white color enamels.
OTHER INCLUSIVE
  • Parapet wall upto 3 feet high using 4.5” thick Red Wirecut bricks
  • ₹ 25,000/- worth free Elevation design.
LOFTS & SHELVES:
  • As per client requirements.
